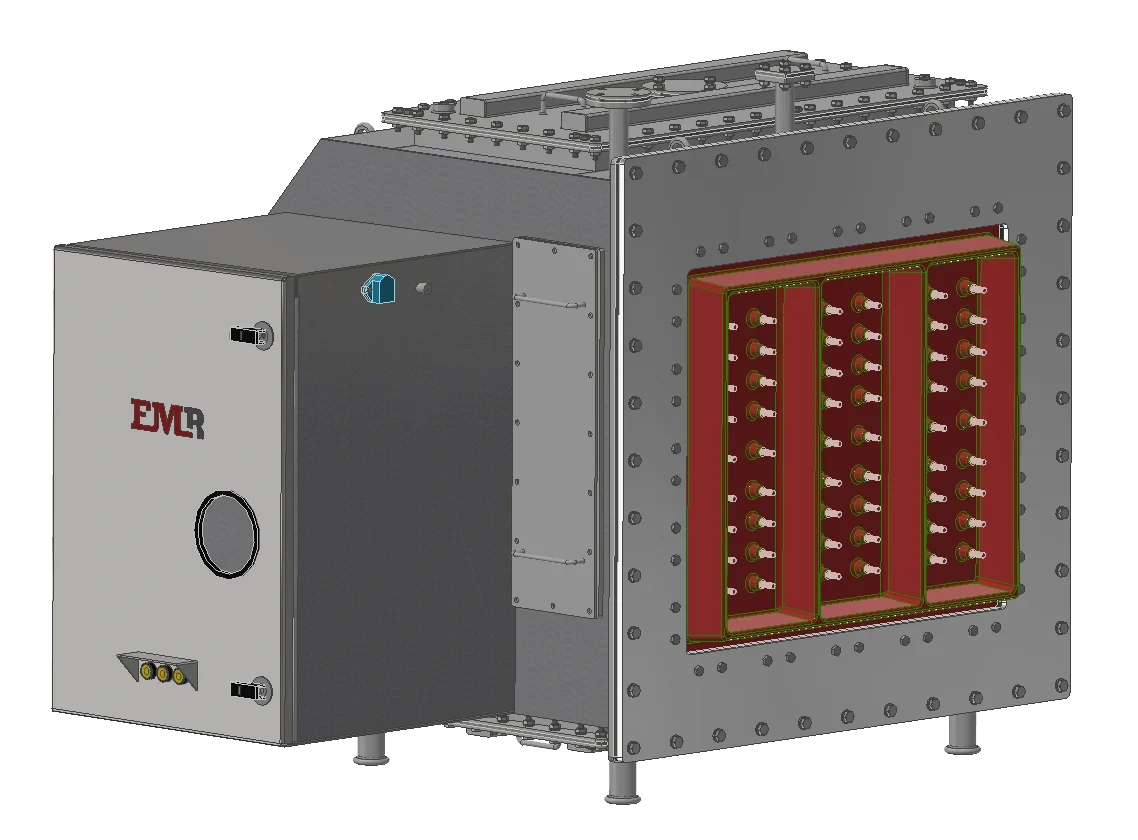

On-Load Tap-Changer TYPE XT
External Mounted OLTC
Reliable • Compact • Easy Maintenance
On-Load Tap-Changer TYPE XT
Why XT Matters
- Compact. Smart. Cost-effective.
- Salient Features
- Technical Highlights
- Applications
- Support & After Sales
Compact Design.intelligent Control.lower Cost
Compact, service and installation-friendly design.
Full local/remote control with operating position and end-limit indication.
Equipped with a standard step by step motor drive.
Reduced oil volume lowers costs.
Salient Features
High-speed resistor type tap change operation
Step-by-step switching principle
Built-in motor drive unit
Electrical & mechanical end position limits
Local and remote control capability
Remote operating position indication
Side windows for easy lead connection
Technical Highlights
Model: XT III 300
Number of poles: 3
Max rated through-current: 300 A
Rated short-time withstand current: 17 kA
Peak withstand current: 35 kA
Max rated step voltage: 1,200 V
Max operating positions: 10
Frequency: 50/60 Hz
Cooling medium: Oil
Installation type: Outdoor
Applications
Oil-type power transformers
Outdoor transformer installations
Industrial power systems
Grid voltage regulation applications
Compact transformer setups
Support & After Sales
Technical assistance
Spare parts support
Installation guidance
Maintenance support
Reliable customer service
